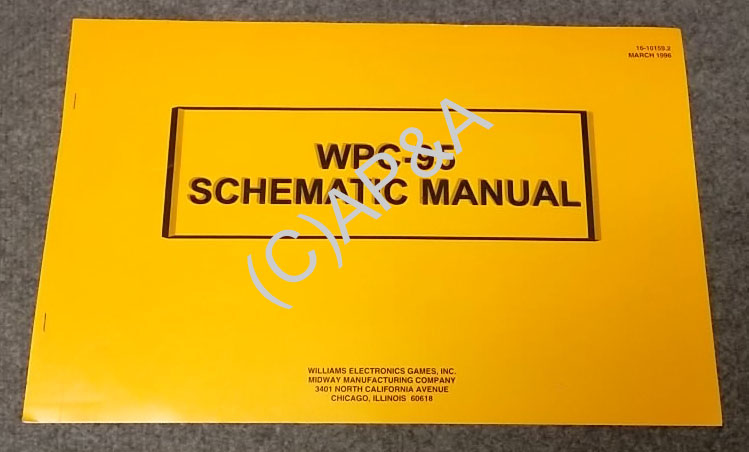

WPC-95 Schematic Manual - Large Orange - March 1996 (Bally/Williams) (ORIGINAL):

Price: $30.00 each
Status: Out of Stock
Part #: PM0448
Condition: New (Original)

For use with Bally and Williams "WPC-95" games made from approx. 1994-1999. Approx. 12 pages. This is the manual that specifically covers the circuit boards, display unit, and power/transformer wiring in these games. Your actual game manual covers only the game-specific (playfield) circuit boards and wiring, but this manual covers the rest! Essential for any circuit board troubleshooting/repair, and a must to complete any WPC-95 game.

Factory-original manual in new condition. Williams part # 16-10159.2 (orange manual, March 1996). Measures 11 x 17 inches.

NOTE: No returns on Paperwork Items - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Attack From Mars, Cactus Canyon, Champion Pub, Cirqus Voltaire

WILLIAMS: Congo, Dirty Harry, Flintstones, JackBot, Johnny Mnemonic, Junk Yard, Medieval Madness, Monster Bash, NBA Fastbreak, Safe Cracker, Scared Stiff, Tales of the Arabian Nights, WhoDunnit
