Freedom (Bally) Game Manual and Schematic Wiring Diagrams Set - 3pcs (Electro-Mechanical Model) (Reprint) (SEE NOTE):

Price: $40.67 set
Status: In Stock

Order:

Part #: PM0512
Condition: New (Reprint)

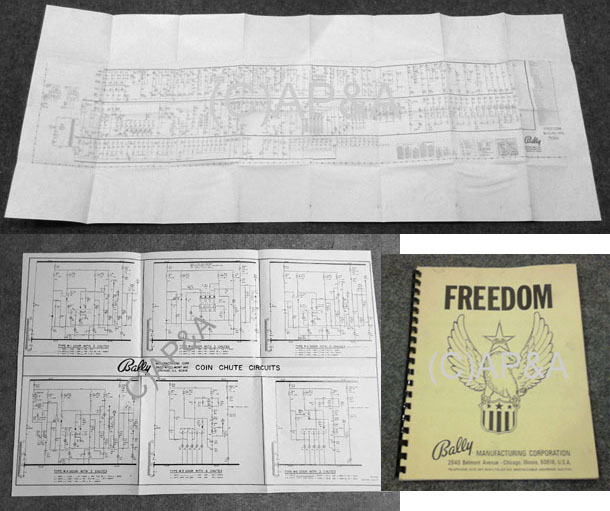

Buy together and save! 3-piece set of game manual and fold-out schematic wiring diagrams for Bally Freedom pinball (electro-mechanical version - see notes below).

Manual is 29 pages and includes info on game setup, operation, game features and scoring, game adjustments, and common part listings and part numbers.

Wiring diagrams include large fold-out main schematic diagram, and separate coin chute circuits diagram. Features diagrams of all circuits with listings of relays/coils/solenoids and part numbers. Reprint documents in new condition.

NOTES:

These documents are for the electro-mechanical (EM) version of Bally Freedom. They will not work with the electronic solid-state (SS) model.
Two versions of the electro-mechanical (EM) version of Freedom were produced- one with 3 pop bumpers (version 1) and one with 4 pop bumpers (version 2). This manual is for the version 1 game, but can be used for the version 2 game as well. Diagrams of both playfield versions are shown below, so you can verify which version you have.

Additional Images:
Click to Enlarge

NOTE: No returns on Paperwork Items - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Freedom (electro-mechanical version)
