1978 Bally Parts Catalog (Reprint) (SEE NOTES):
Price: $39.25 each
Status: In Stock
Part #: PM0593
Condition: New (Reprint)
|
|
|
83 pages. Covers common parts/components in electronic solid-state (SS) pinball machines made by Bally from approx. 1977-1978 (see game listing below).
Many parts listed in this catalog are found on earlier and later model games as well.
Includes sections on:- Circuit boards and score displays
- Game-specific playfield parts
- Coin door assembly
- Cabinet and backbox parts and components
- Coin mechanisms
- Common mechanisms/assemblies (flippers, bumpers, kickers, etc)
NOTES: - The majority of parts listed in this vintage manual are now obsolete/discontinued and no longer being produced.
- If you are wanting this catalog for helping you ID and track down replacement parts, it will not do a comprehensive job in that regard, as most parts listed in it are no longer made.
- This is not a comprehensive catalog that lists every single part that Bally made. While it has a substantial amount of information, it does not have everything.
- This catalog is to be regarded as more of a nostalgic reference at this point, than a useful catalog.
- You may find some part numbers helpful in tracking down more common wear parts, or parts that have been reproduced in recent years.

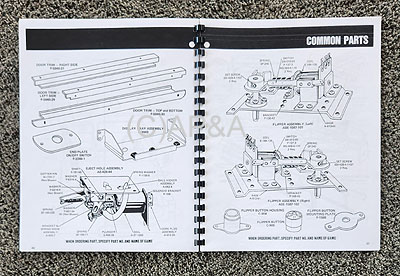

- Part and component diagrams can of course be helpful for disassembly and reassembly.
- Diagrams and part listings for modules (circuit boards, displays), and common playfield parts, are duplicated in individual game manuals, so you will find this same information in both documents.
- This catalog does not cover parts for bingo pinballs, or other non-pinball games.
- This item is not returnable. All sales on paperwork items are final.
Additional Images:
Click to Enlarge
NOTE: No returns on Paperwork Items - all sales final.
Ask a question about this item
Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Black Jack (electronic), Eight Ball, Evel Knievel (electronic coin-op model only), Freedom (electronic), Lost World, Mata Hari (electronic), Night Rider (electronic), Power Play, Six Million Dollar Man, Strikes and Spares
|
