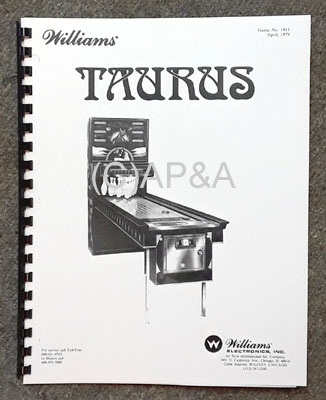

Taurus shuffle (Williams) Game Manual and Schematics (Reprint):

Price: $36.50 set
Status: In Stock
Order:



Part #: PM0825
Condition: New (Reprint)
34-page instruction/operation manual with 18-page fold-out wiring diagram/schematics.

Manual includes information on game installation, operation, adjustments, bookkeeping, diagnostics, wire/cable interconnect charts, mechanical adjustments, and partial cabinet parts diagram/listing.

Reprint manual/schematics in new condition.

NOTE: No returns on Paperwork Items - all sales final.

  • Ask a question about this item

    Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
    WILLIAMS: Taurus (shuffle)
