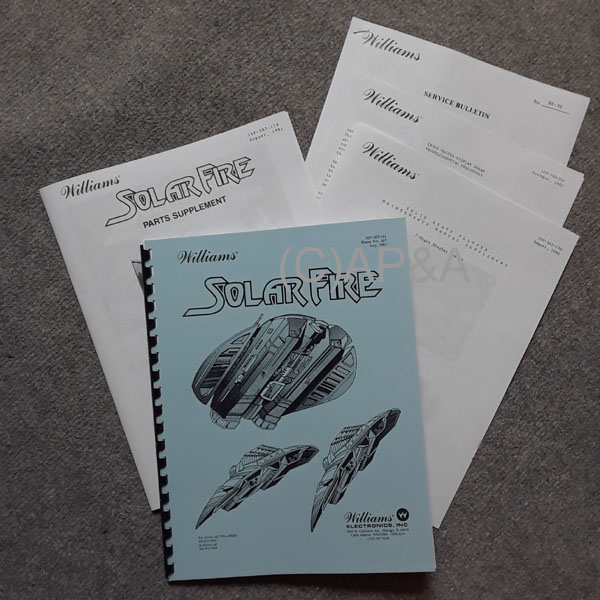

Solar Fire (Williams) Game and Parts Manual Set (5pcs) (Reprint):

Price: $45.50 set
Status: In Stock

Order:

Part #: PM0875
Condition: New (Reprint)

Buy together and save! Set of 2 manuals and 3 additional documents for Williams Solar Fire pinball.

Includes the following items:

Game manual and schematics
Parts Supplement Manual
Maintenance Manual Supplement
7-digit score display system troubleshooting guide
Factory service bulletin

Game Manual and Schematics is 29 pages and includes info on game setup, inspection, fold-out electronic schematics and wiring diagrams, and Solar Fire Summary of Features sheet describing game play/design features.

Parts Supplement Manual is 14 pages and includes full parts listings with part numbers and diagrams.

Reprint documents in new condition. Replacements for original factory part #s 16P-507-101 (manual) and 16P-507-110 (parts supplement).

NOTE: No returns on Paperwork Items - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Solar Fire
