Potentiometer- 50K Ohm Rotary Linear Taper - 10mm - Hexagonal Adjustment:

Price: $2.49 each
Status: Non-stocked, special-order item. more info...
Part #: POT50K1
Condition: New

50K-ohm trimmer pot. 10mm diameter, vertical PCB mount, 3 terminals, 2.5mm terminal spacing (see additional image below for specs).

Hexagonal adjustment knob (accepts Allen wrench, or small Phillips screwdriver often works too).

Rated 150mW, 200vdc max, 10% tolerance.

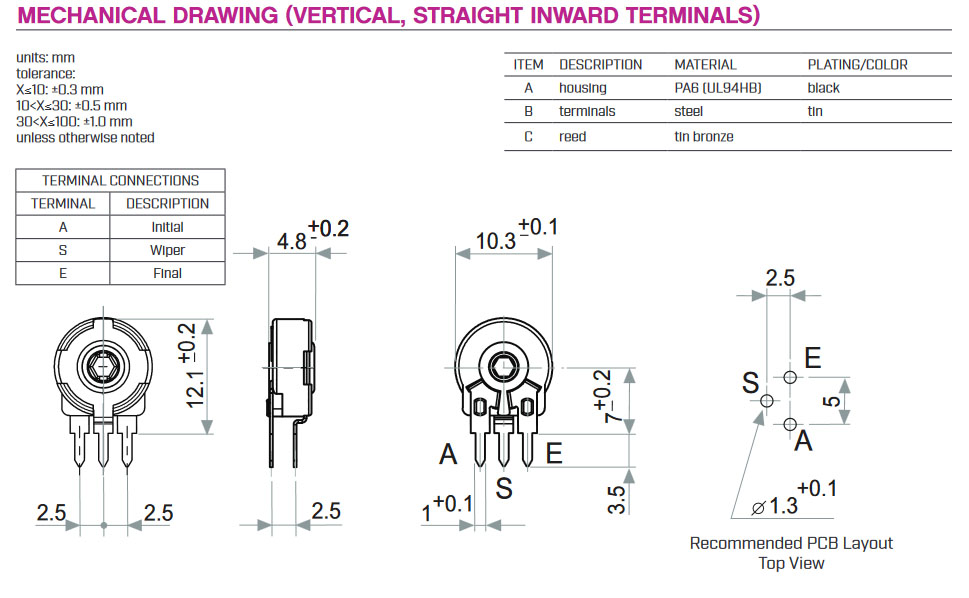

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.
