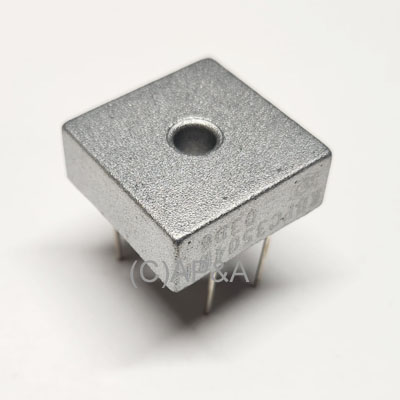

Power Rectifier- 35 amp 400v - Wire Leads:

Price: $7.95 each

Status: In Stock
Order:



Part #: REC3504W
Condition: New
Heavy-duty replacement rectifier for most electronic solid-state (SS) pinball games- old and new models. Rated at 35 amps, 400 volts, with wire leads. Will replace and out-last lower-rated rectifiers. Measures 1-1/8 inch square, 7/16 inch thick. Can also be used as replacement for 25 amp rectifiers (2502, 2504, etc) and similar rectifiers with wire or lug leads.

Excellent upgrade part or direct replacement for the commonly-failed BR1, BR2, and BR3 rectifiers in Bally/Williams WPC pinballs (1990-up). Replaces Bally/Williams # 5100-09690-00, Capcom # DI00101, Midway # 103E-00005-0005, CM3504, GBPC3504W, KBPC3502-W, KBPC3504W, and similar others.

HINT: Replacing a failed BR1, BR2, or BR3 rectifier on a Williams or Bally game? Good idea to replace the filter capacitor at the same time- our part # CAP15KUF25VRADSI. Use some new heat-sink compound as well.

Additional Images:



  • Ask a question about this item

    Used In The Following Games:
    BALLY: Addams Family, Addams Family Gold, Black Pyramid, Black Rose, BMX, Bugs Bunny's Birthday Ball, Centaur, Centaur II, Corvette, Creature From the Black Lagoon, Cybernaut, Doctor Who, Dr. Dude, Eight Ball Deluxe, Eight Ball Deluxe Limited Edition, Elektra, Elvira and the Party Monsters, Embryon, Fathom, Fireball Classic, Fireball II, Flash Gordon, Game Show, Gilligan's Island, Goldball, Harley Davidson (Bally), Indianapolis 500, Judge Dredd, Kings of Steel, Medusa, Mousin' Around, Mr. & Mrs. Pac-Man, Party Zone, Pool Sharks, Popeye Saves the Earth, Radical!, Rapid Fire, Shadow, Theatre of Magic, Speakeasy, Spectrum, Spy Hunter, Transporter The Rescue, Truck Stop, Twilight Zone, Vector, WhoDunnit, World Cup Soccer '94, Xenon, X's & O's, more

    MIDWAY: Hot Shots (basketball)

    WILLIAMS: Bad Cats, Banzai Run, Big Guns, Black Knight 2000, Comet, Cyclone (1988), Demolition Man, Diner, Dirty Harry, Dracula, Earthshaker, Fire!, Fish Tales, Flintstones, Funhouse, Getaway High Speed II, Grand Lizard, High Speed, Hurricane, Indiana Jones (Williams), JackBot, Johnny Mnemonic, Jokerz!, Machine: Bride of PinBot, Millionaire, No Fear, PinBot, Police Force, Riverboat Gambler, Road Kings, Road Show, Rollergames, Slugfest, Sorcerer, Space Shuttle, Space Station, Star Trek: The Next Generation, Swords of Fury, Taxi, Terminator 2, Whirlwind, White Water
