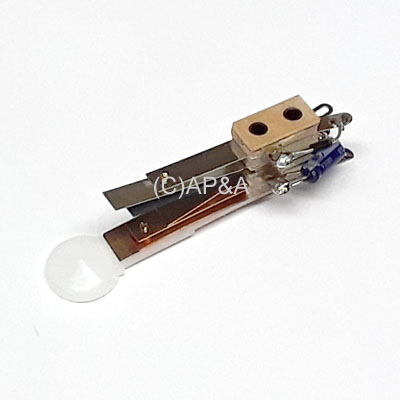

Switch Stack Assembly - Pop Bumper Dual Contact - w/ Components (Williams):

Price: $20.46 each
Status: In Stock
(10 Available)

Order:

Part #: SW-11A-35A
Condition: New

Dual contact switch stack assembly for pop bumpers in some late-model Williams electro-mechanical (EM) games, and many early electronic solid-state (SS) games from approx. 1977 through early 1987. Part of original switch stack assembly # B-8316.

2 sets of contacts are included in this switch stack: 1 for detecting ball hits, and 1 for scoring points when the bumper fires. Switch mounting bracket and hardware not included- re-use your old hardware.

Can be substituted for discontinued Data East switch assembly # 180-5036-00.

Includes the following parts:

Switch stack with plastic detector spoon # SW-11A-35
Scoring switch diode # 1N4004
Detector switch resistor 100 ohm 1/4-watt # RES100-1/4W
Detector switch capacitor 22uF 25v Axial # CAP22UF25VAXL

If you need this switch without electronic components, order # SW-11A-35 instead.

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Used In The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Algar, Alien Poker, Banzai Run, Barracora, Big Guns, Black Knight, Blackout, Comet, Contact, Disco Fever, Earthshaker, F-14 Tomcat, Firepower, Firepower II, Flash, Gorgar, High Speed, Hot Tip (electronic), Jokerz, Laser Ball, Lucky Seven (electronic), Millionaire, Phoenix (1978), PinBot, Pokerino, Road Kings, Scorpion, Sorcerer, Space Shuttle, Space Station, Stellar Wars, Taxi, Time Warp, Tri Zone, Whirlwind, World Cup, more
