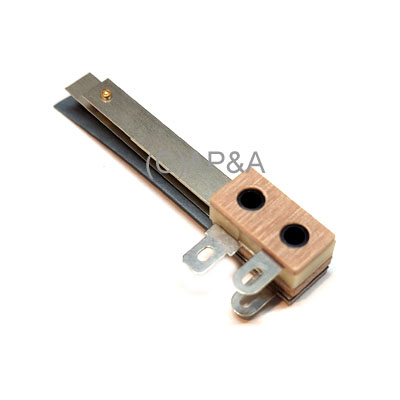

Leaf Switch - 3-lug w/ Fish Paper Insulator - Aftermarket Replacement (Williams):

Price: $8.89 each
Status: In Stock
(1 Available)

Selection: (Click to Select)
Order:

Part #: SW-1A-136
Condition: New

Leaf switch assembly for some older Williams electronic solid-state (SS) pinball games (see game listing below).

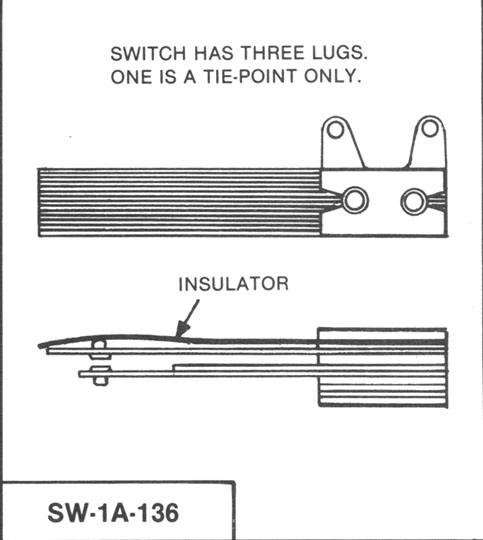

Features 3 lugs, blade tensioner, and fish paper insulator.

Available with or without diode (select above when ordering- ships WITHOUT diode by default).

Can substitute for discontinued switch # SW-1A-138.

As with any switch replacement, this part may require slight adjustment after installation for proper operation.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Black Knight, Firepower, Jungle Lord, Scorpion
