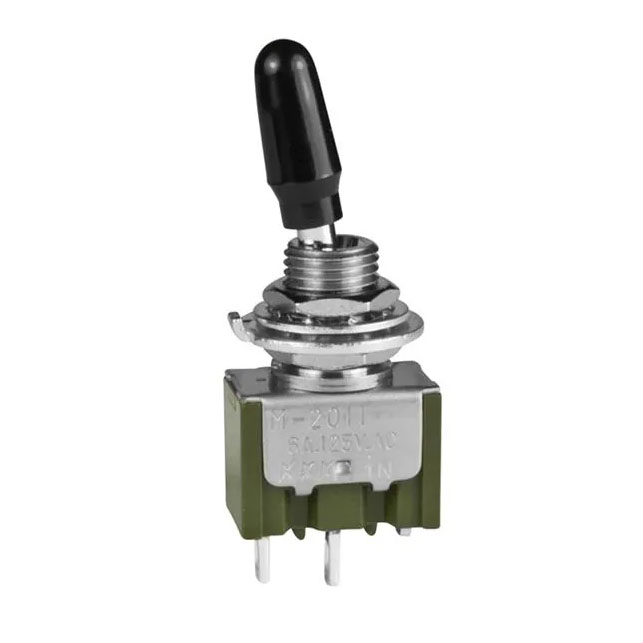

Micro Toggle Switch ON/OFF - Bushing Mount - Solder Lugs:

Price: $5.99 each
Status: In Stock
(1 Available)

Order:

Part #: SWTG1
Condition: New

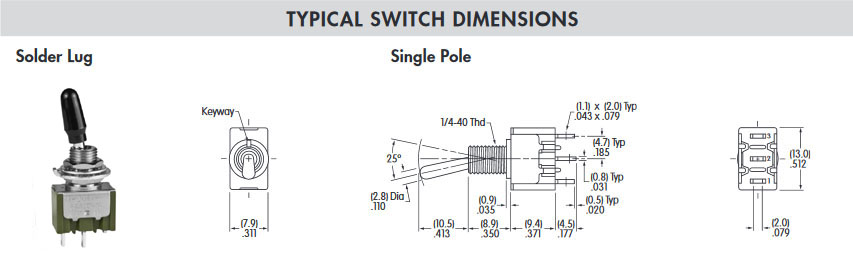

Sub-miniature toggle switch, SPST (ON/OFF). Switch body measures approx. 1/2-inch long, 5/16-inch thick, with 1/4-inch diameter threaded neck. Solder lugs. Bushing mount- includes mounting nut and washer.

Replaces original auto/manual toggle switch on diagnostic button panel in many early Williams electronic solid-state (SS) pinball games.

Can also serve as a replacement for the obsolete middle auto up / manual down pushbutton in later solid-state games.

Additional Images:
Click to Enlarge

NOTE: No returns on Electronics - all sales final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
WILLIAMS: Contact, Disco Fever, Flash, Gorgar, Hot Tip (electronic), Laser Ball, Lucky Seven, Phoenix, Pokerino, Stellar Wars, Time Warp, Tri Zone, World Cup, more
