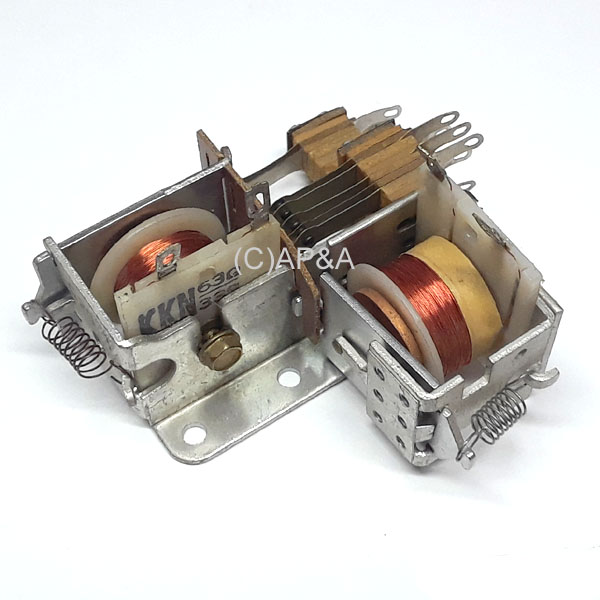

Relay Assembly (Trip/Latch) w/ KKN-339 Coils - 6 Switches - NOS (Bally):

Price: $40.00 each
Status: In Stock
(4 Available)

Order:

Part #: U1222
Condition: New

New/unused factory-original trip/latch relay assembly for some older Bally electro-mechanical (EM) pinball games from the 1960s and early 1970s. NOS (new old stock) part. Typically used for game over relay in most machines.

Includes two KKN-339 coils. 6 switches.

Switch Configuration:

ROW 1 (bottom): 4 switches. 3 are normally-open, 1 is normally-closed.
ROW 2 (top): 2 switches. 1 is make/break (normally open/common/normally closed), 1 is normally open

2 rows, 2 switches each row, both make/break (normally-open/common/normally-closed). Bakelite switch actuator.

May require some switch adjustment and/or contact cleaning for proper operation.

NOTE: No returns on Electronics - all sales final.
