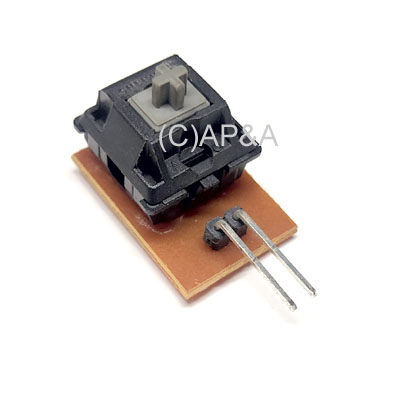

Switch PCB Assembly w/o Diode and Capacitor - Modular Standup Target (USED):

Price: $5.00 each
Status: In Stock
(5 Available)

Order:

Part #: U24
Condition: Used - Good

Used early design switch PCB assembly for modular targets found on some Sega and Stern Pinball games (see game listing below).

This early design part does not include a diode or capacitor like modern replacements do. Header pins are 13mm in length, with 0.100 inch spacing.

Connects to existing wiring/connector housing in game. See Related Items listing below for connector parts and installation tools, each sold separately.

Used part in good working condition.

NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.

Ask a question about this item

Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
SEGA: Godzilla, Golden Cue, Goldeneye, Lost in Space, Lost World Jurassic Park 2, Sharkey's Shootout, South Park, Space Jam, Star Wars Trilogy, Starship Troopers, Twister, Viper Night Drivin, X-Files

STERN: Austin Powers, Harley Davidson, High Roller Casino, Simpsons Pinball Party, South Park
