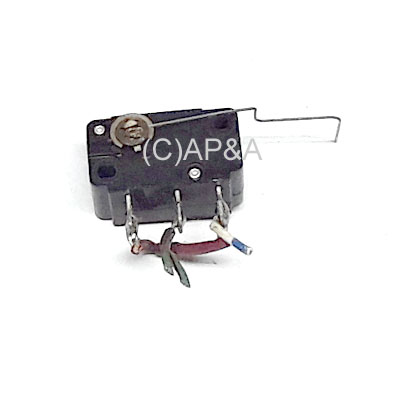

Coin Switch with Trip Wireform - LL/UR Mounting (USED):
Price: $8.00 each
Status: In Stock
(1 Available)
Part #: U700
Condition: Used
|
|
|
Used large coin microswitch from late 1980s/early 1990s Bally or Williams System 9 or 11 game. Switch has pre-bent trip/actuator wireform for US Quarters, and includes diode across solder lugs (diode can be clipped off if not needed). Screw mounting holes in lower left (LL) and upper right (UR) of switch body, as pictured. 3 straight solder lugs on bottom of switch body (Common, Normally Open, Normally Closed).
This switch is commonly used on older/vintage games, and some late-model units. Used for coin switch and also for some playfield applications (ball trough, etc). Replaces Bally # ASE-277-178, E-108-92, CoinCo # 27-1092, E53, F53, Omron # C-563-1, and similar others. Switch body measures 1-5/32 inches long x 11/16 inches tall x 15/32 inches thick (30 x 18 x 12mm). Mounting holes measure 1-1/16 inches (27mm) center-to-center.
NOTES:- This switch is missing the push nut that is normally installed over the trip wire where it mounts to the cam on the switch. This makes the wire a bit loose/sloppy, so may need to be secured, depending on your application.
- Please confirm measurements and fit of this part on your particular game before ordering, as used parts are not returnable.
- Not all games listed below may use this style switch.
NOTE: No returns on Electronics - all sales final.
NOTE: No warranty or returns on used items. Used items are sold as-is, and all sales are final.
Ask a question about this item
Fits The Following Games: (The list below may not be complete, and it's accuracy is not guaranteed. Contact us if you have any questions.)
BALLY: Dr. Dude, Elvira and the Party Monsters, Game Show, Pool Sharks, more
WILLIAMS: Black Knight 2000, Comet, Cyclone, Earthshaker, F-14 Tomcat, Grand Lizard, High Speed, Millionaire, Riverboat Gambler, Road Kings, Swords of Fury, Taxi, Whirlwind, more
|
